<AC Transit General Office Weatherization & Roof Repairs

Forensic Investigation / Roofing / Waterproofing

AC Transit General Office Weatherization & Roof Repairs

Oakland, California

Office | Transportation

AC Transit

Cameron Toler
Derrick Porter
Justin Kelly
Michael T. Tran
Sabrina Richter
Thomas K. Butt


State Roofing Systems, California Plus Engineering, Inc.

EDeisgnC, Silva Cost Consulting, WJE, Inc., Intertek, Applied Materials engineering

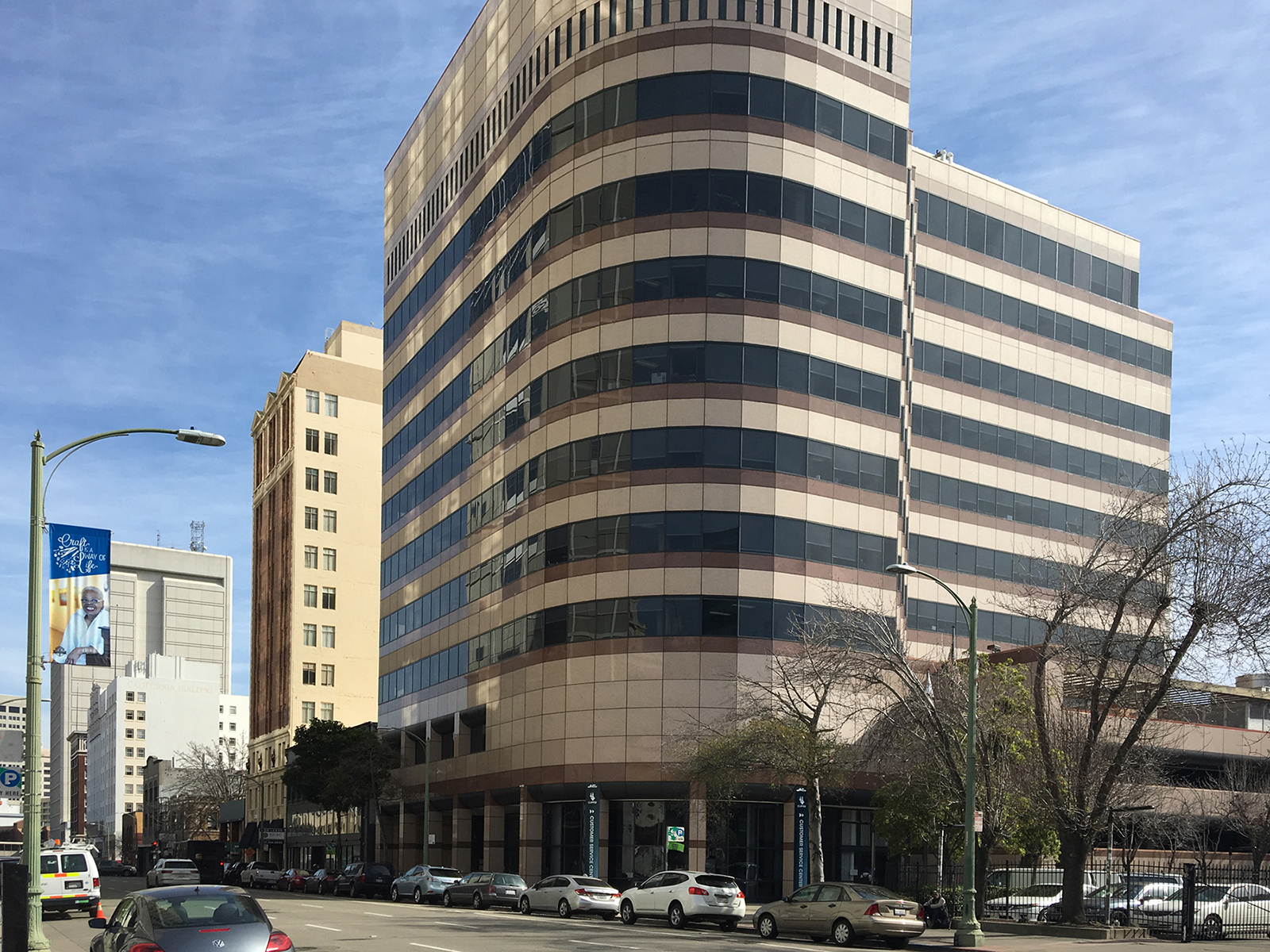

Interactive Resources prepared construction documents for a federally-funded project to increase the weather resistance of the Alameda-Contra Costa Transit District (AC Transit) 10-story General Office building at 1600 Franklin Street in downtown Oakland. This project was intended to extend the useful life of the facilities, prevent further deterioration of the building envelope and moisture penetration to the interiors, reduce ongoing maintenance costs, and provide energy savings. The project was divided into two phases (1) mitigation to curtain wall and glazing deterioration and defects; and (2) roofing and waterproofing, mainly horizontal surfaces including some HVAC equipment alterations.

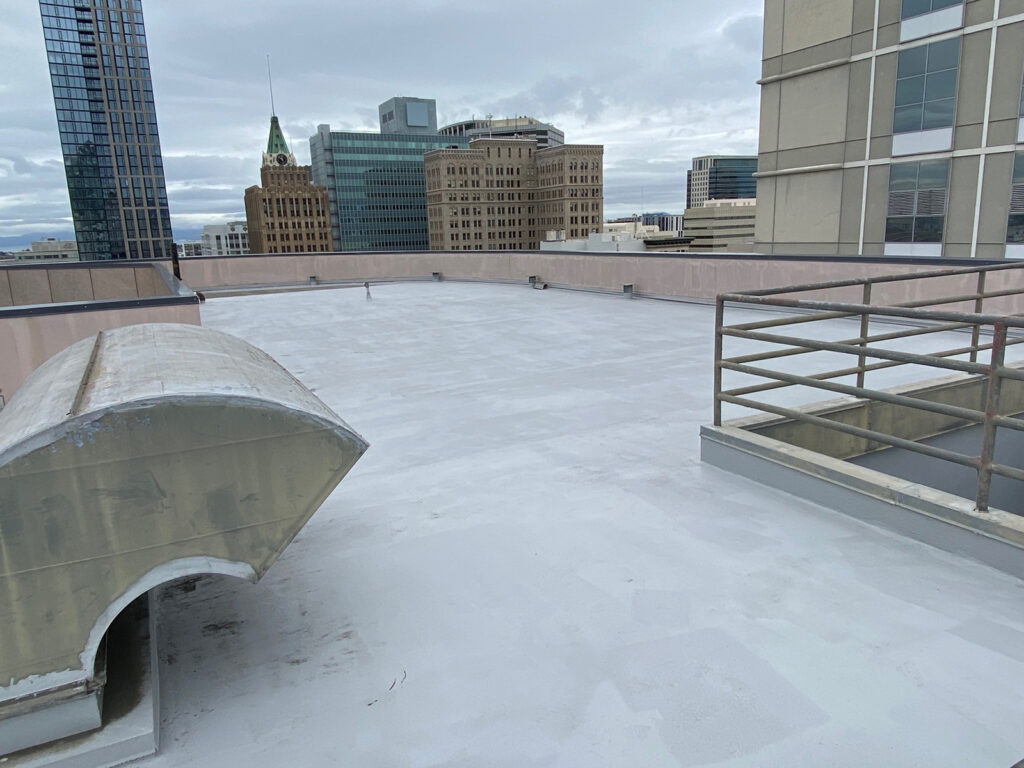

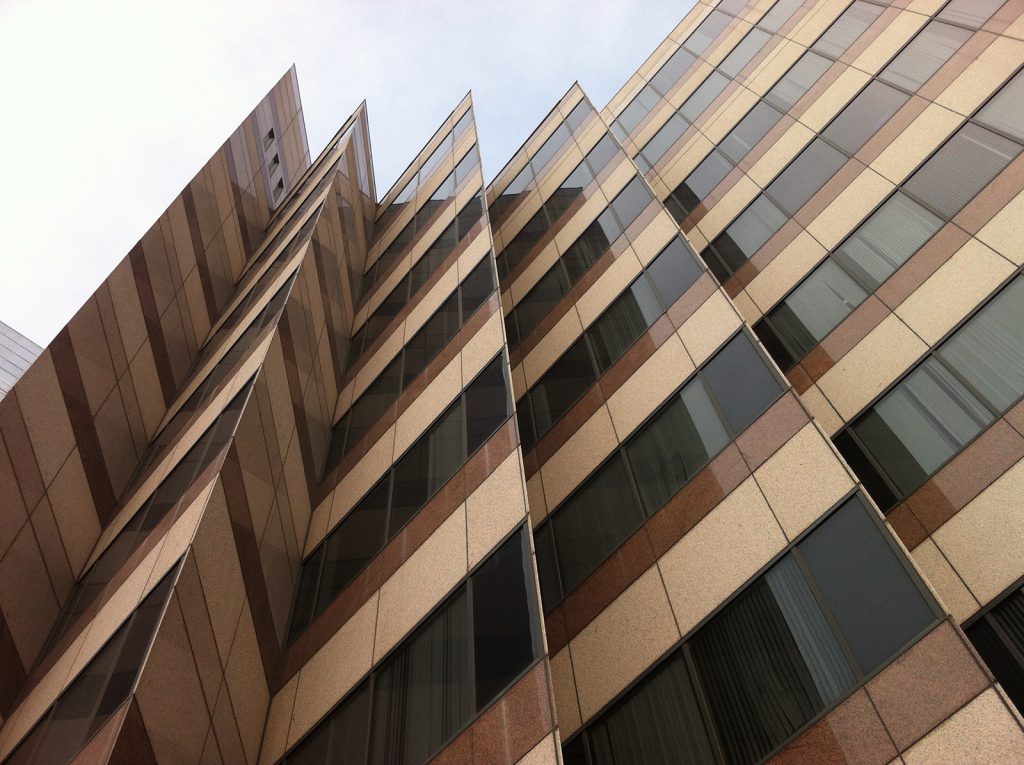

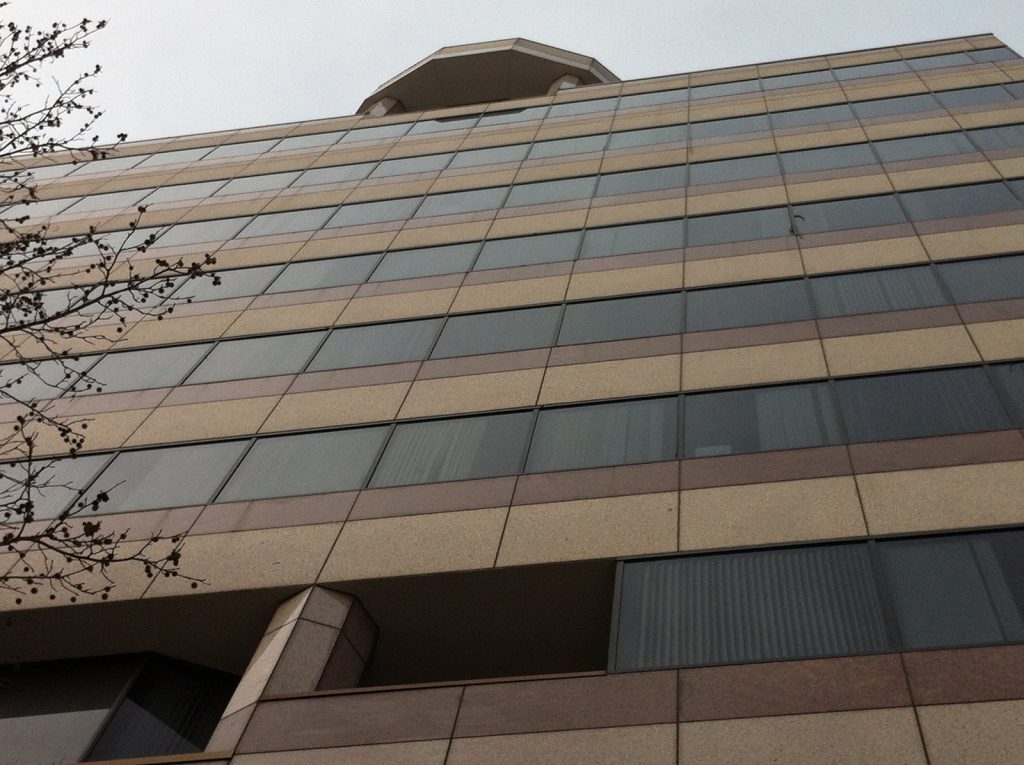

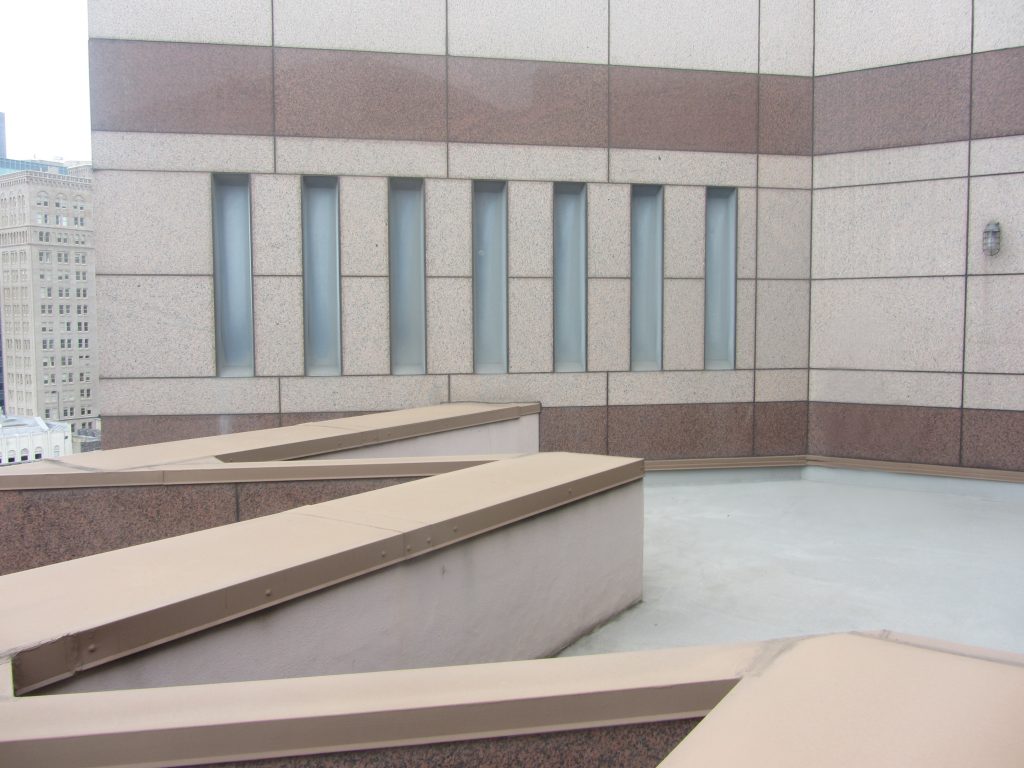

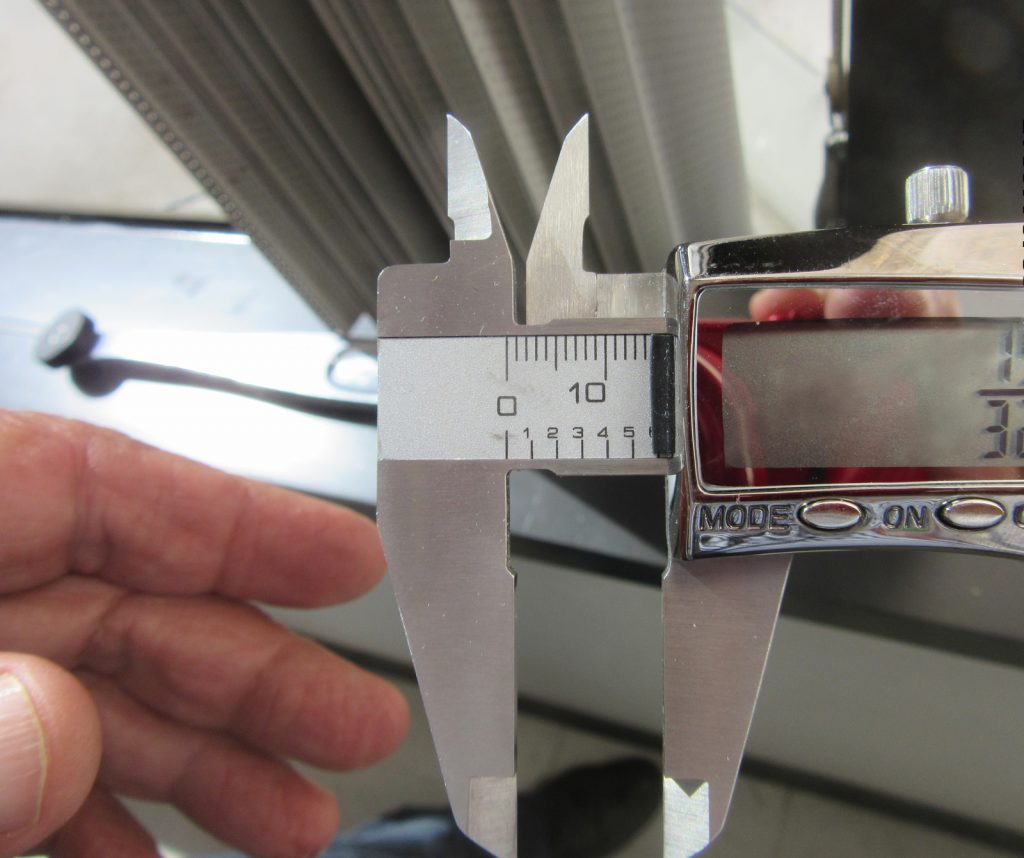

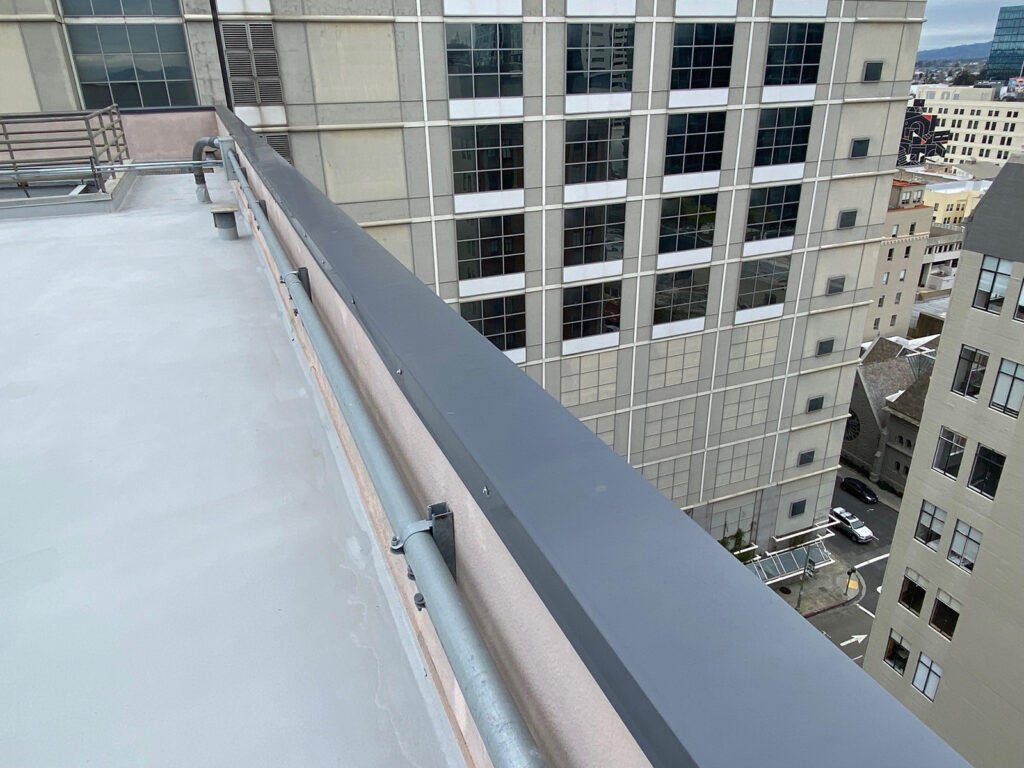

The project began with an investigation of the curtain wall by Interactive Resources. The existing glazing was failing in several ways, including deteriorated glazing gaskets, shifting in the frames resulting in open gaps and chipping to glazing lites. Interactive Resources determined that there would be no improvement in energy efficiency resulting from replacing the existing glazing. A plan was developed to retain most of the existing glazing with repairs to setting accessories and repositioning. Gaskets were replaced and the windows wet sealed. Portions of the granite faced panels were also resealed. Mockups were water tested and approved. New storefront glazing and entrances were added at the ground floor. Some parapet copings were replaced. Phase one is complete and Phase two is complete and included the roofing, waterproofing, deck finish upgrades, new parapet copings, replacement of new and removal of old mechanical equipment.

Interactive Resources was also involved in the evaluation and repair of access systems for the AC Transit General Office Building in Oakland.

This project extended the useful life of the facilities, prevented further deterioration of the building envelopes and moisture penetration of the interiors, reduced ongoing maintenance costs, and provided energy savings.


“This contract with Interactive Resources was a negotiated, fixed fee design contract to include the preparation of drawings, technical specifications and an estimate of probable construction costs suitable for publicly-advertised, competitive bid. The A-E contract also included services for bid evaluation, and subsequent construction contract support services including construction contract close-out services. The project was successfully concluded, in part because of the thorough preparation of plans and specifications by Interactive Resources. As a client of Interactive Resources, I would like to emphasize that the principal, Mr. Tom Butt, had always been personally involved in the project and been very responsive to our queries and comments.”

– Magnus Hienzsch, Project Manager, AC Transit (retired)
